Educational and Corporate Solutions

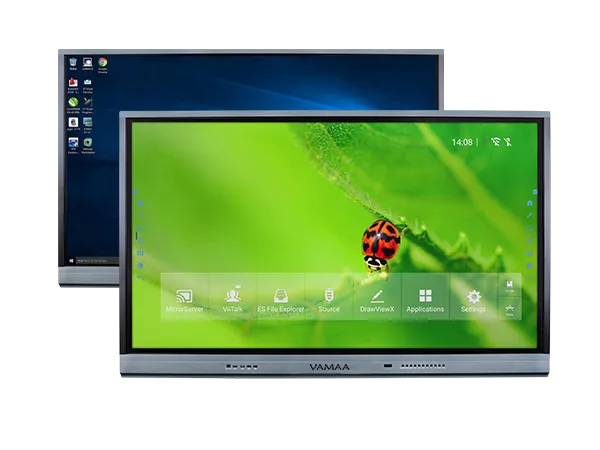

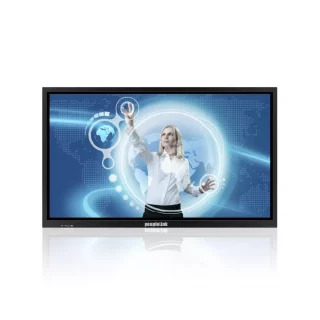

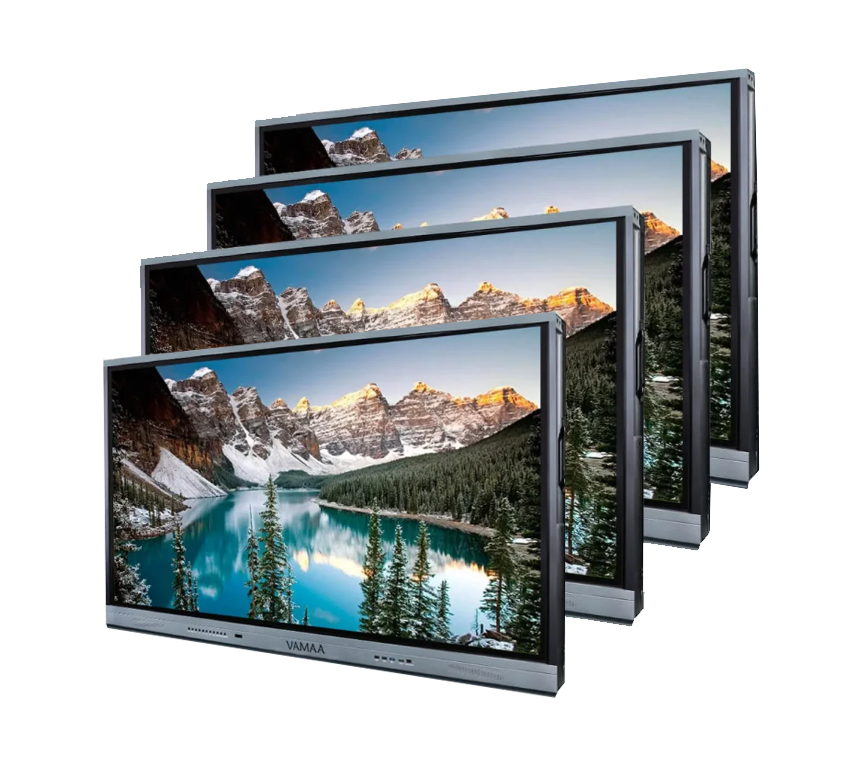

65" IFP with and without OPS (Open Pluggable System)
75" IFP with and without OPS (Open Pluggable System)
86" IFP with and without OPS (Open Pluggable System)
110" IFP with and without OPS (Open Pluggable System)
View More Details

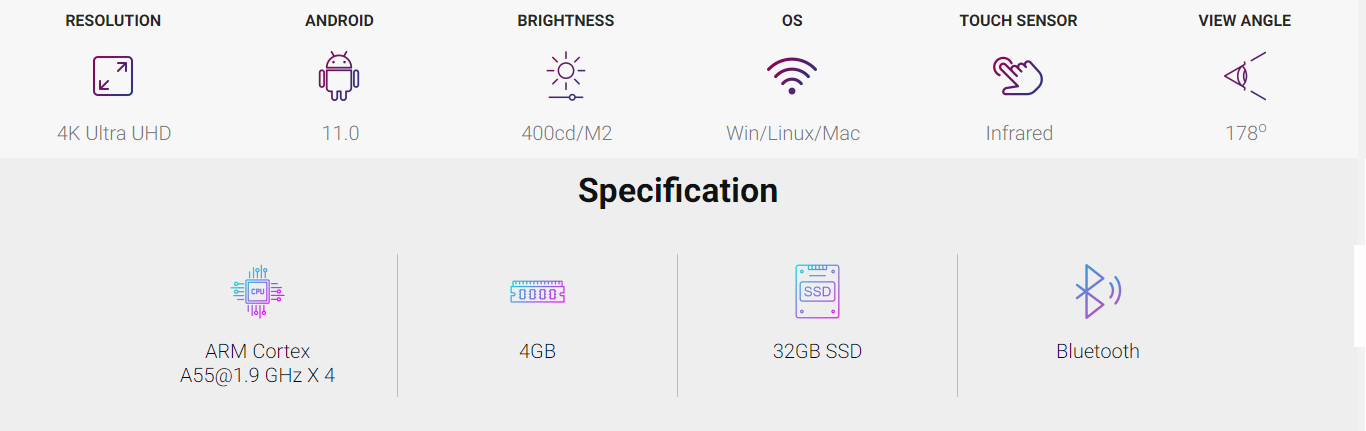

| Product | Parameter | Specification |
|---|---|---|
| Display Panel | Size | 65" |
| Resolution | 3840x2160 UHD | |
| Screen Size | 1428.5 X 803.5 | |
| Brightness | 400 cd/m2 | |
| Static Contrast | 1200:1 | |
| Dynamic Contrast | 50000:1 | |
| Color | 10 Bit | |
| View Angle | 178 Deg | |
| Speaker Output | 20W x 2 | |
| Aspect Ratio | 16:09 | |
| Support Resolution | 4K Ultra UHD | |
| Color Depth | 1.07 Billion Colors | |
| Temper Glass | 4mm, 7H Hardness | |
| I/O Ports Rear | 2 x HDMI;1xUSB2.0,1xUSB 3.0;1xUSB Type B;1xRS232;1xRJ45;1xAV;1xOPS | |
| I/O Ports Front | 1xHDMI;1xUSB Type B;3xUSB 3.0; 1xUSB Type C | |
| Buttons | 8 Key (Power, Source, Menu, Vol+, Vol-, Home, Enter, ES) | |
| Bonding | Zero Bonding Technology | |
| Android | Version | 11.0 |
| Processor | ARM Cortex A55@1.9 GHz x 4 | |
| Graphics | Quad Core Mali G52 | |
| Wifi Support | Dual Band 2.4G and 5G | |
| Wired Network | 100MB | |
| Bluetooth | 5.0 | |
| RAM | 4GB | |
| Storage | 32GB | |
| Services | Google Play Services | |
| Light Sensor | Integrated light sensor for brightness detector that automatically adjust the brightness of the panel according to ambient light. | |
| Voltage | AC 100~240V 50/60Hz | |
| Working Temperature | 0-40 C | |
| Product Size | 1485x905x85mm | |
| NW/GW | 35/49 Kgs | |
| Power Consumption | ⪡250W | |
| Accessories | Megnetic Pen x2; HDMI Cable; USB Cable x1; Power Cable x1; Remote x1; Wall Mount Bracket x1 | |
| Touch Parameter | Touch Technology | Infrared |
| Touch Point | 20 Touch Point for Android and Windows | |
| Writing Mode | Finger and Opaqe Object | |
| Accuracy | ≲2mm | |
| Response Time | 4ms | |
| Cursor Speed | ≥100 dot/s | |
| OS Support | Android/Linux/Windows/ChromeOS/Mac | |
| OPS Parameter | Processor Make | Intel |
| Processor | i5 10th Gen 10310U | |
| RAM | 8GB DDR4 | |
| RAM Expandable to | 64GB | |
| HDD | 1 TB | |
| SSD | 128 GB | |
| SSD Expandable | 1 TB | |
| Verticle Segment | Mobile | |
| Cores | 4 Core | |
| Frequency | 4 x 1.70 GHz | |
| Cache | 6MB | |
| Bus Speed | 4GT/s | |
| TDP | 15W | |
| Graphics | Intel 10th Gen Graphics 1.15GHz | |
| Graphics Frequency | 60Hz |
| Product | Parameter | Specification |
|---|---|---|
| Display Panel | Size | 75" |
| Resolution | 3840x2160 UHD | |
| Screen Size | 1905 x 934 | |
| Brightness | 400 cd/m2 | |
| Static Contrast | 1200:1 | |
| Dynamic Contrast | 50000:1 | |
| Color | 10 Bit | |
| View Angle | 178 Deg | |
| Speaker Output | 20W x 2 | |
| Aspect Ratio | 16:09 | |
| Support Resolution | 4K Ultra UHD | |
| Color Depth | 1.07 Billion Colors | |
| Temper Glass | 4mm, 7H Hardness | |
| I/O Ports Rear | 2 x HDMI;1xUSB2.0,1xUSB 3.0;1xUSB Type B;1xRS232;1xRJ45;1xAV;1xOPS | |
| I/O Ports Front | 1xHDMI;1xUSB Type B;3xUSB 3.0; 1xUSB Type C | |
| Buttons | 8 Key (Power, Source, Menu, Vol+, Vol-, Home, Enter, ES) | |
| Bonding | Zero Bonding Technology | |
| Android | Version | 11.0 |
| Processor | ARM Cortex A55@1.9 GHz x 4 | |
| Graphics | Quad Core Mali G52 | |
| Wifi Support | Dual Band 2.4G and 5G | |
| Wired Network | 100MB | |
| Bluetooth | 5.0 | |
| RAM | 4GB | |
| Storage | 32GB | |
| Services | Google Play Services | |
| Light Sensor | Integrated light sensor for brightness detector that automatically adjust the brightness of the panel according to ambient light. | |
| Voltage | AC 100~240V 50/60Hz | |
| Working Temperature | 0-40 C | |
| Product Size | 1696x1046x6mm | |
| NW/GW | 54/66 Kgs | |
| Power Consumption | ⪡250W | |
| Accessories | Megnetic Pen x2; HDMI Cable; USB Cable x1; Power Cable x1; Remote x1; Wall Mount Bracket x1 | |
| Touch Parameter | Touch Technology | Infrared |
| Touch Point | 20 Touch Point for Android and Windows | |
| Writing Mode | Finger and Opaqe Object | |
| Accuracy | ≲2mm | |
| Response Time | 4ms | |
| Cursor Speed | ≥100 dot/s | |
| OS Support | Android/Linux/Windows/ChromeOS/Mac | |
| OPS Parameter | Processor Make | Intel |
| Processor | i5 10th Gen 10310U | |
| RAM | 8GB DDR4 | |
| RAM Expandable to | 64GB | |
| HDD | 1 TB | |
| SSD | 128 GB | |
| SSD Expandable | 1 TB | |
| Verticle Segment | Mobile | |
| Cores | 4 Core | |
| Frequency | 4 x 1.70 GHz | |
| Cache | 6MB | |
| Bus Speed | 4GT/s | |
| TDP | 15W | |
| Graphics | Intel 10th Gen Graphics 1.15GHz | |
| Graphics Frequency | 60Hz |
| Product | Parameter | Specification |
|---|---|---|
| Display Panel | Size | 86" |
| Resolution | 3840x2160 UHD | |
| Screen Size | 1904 x 1071 | |
| Brightness | 400 cd/m2 | |
| Static Contrast | 1200:1 | |
| Dynamic Contrast | 50000:1 | |
| Color | 10 Bit | |
| View Angle | 178 Deg | |
| Speaker Output | 20W x 2 | |
| Aspect Ratio | 16:09 | |
| Support Resolution | 4K Ultra UHD | |
| Color Depth | 1.07 Billion Colors | |
| Temper Glass | 4mm, 7H Hardness | |
| I/O Ports Rear | 2 x HDMI;1xUSB2.0,1xUSB 3.0;1xUSB Type B;1xRS232;1xRJ45;1xAV;1xOPS | |
| I/O Ports Front | 1xHDMI;1xUSB Type B;3xUSB 3.0; 1xUSB Type C | |
| Buttons | 8 Key (Power, Source, Menu, Vol+, Vol-, Home, Enter, ES) | |
| Bonding | Zero Bonding Technology | |
| Android | Version | 11.0 |
| Processor | ARM Cortex A55@1.9 GHz x 4 | |
| Graphics | Quad Core Mali G52 | |
| Wifi Support | Dual Band 2.4G and 5G | |
| Wired Network | 100MB | |
| Bluetooth | 5.0 | |
| RAM | 4GB | |
| Storage | 32GB | |
| Services | Google Play Services | |
| Light Sensor | Integrated light sensor for brightness detector that automatically adjust the brightness of the panel according to ambient light. | |
| Voltage | AC 100~240V 50/60Hz | |
| Working Temperature | 0-40 C | |
| Product Size | 1696x1193x89mm | |
| NW/GW | 70/91 Kgs | |
| Power Consumption | ⪡250W | |
| Accessories | Megnetic Pen x2; HDMI Cable; USB Cable x1; Power Cable x1; Remote x1; Wall Mount Bracket x1 | |
| Touch Parameter | Touch Technology | Infrared |
| Touch Point | 20 Touch Point for Android and Windows | |
| Writing Mode | Finger and Opaqe Object | |
| Accuracy | ≲2mm | |
| Response Time | 4ms | |
| Cursor Speed | ≥100 dot/s | |
| OS Support | Android/Linux/Windows/ChromeOS/Mac | |
| OPS Parameter | Processor Make | Intel |
| Processor | i5 10th Gen 10310U | |
| RAM | 8GB DDR4 | |
| RAM Expandable to | 64GB | |
| HDD | 1 TB | |
| SSD | 128 GB | |
| SSD Expandable | 1 TB | |
| Verticle Segment | Mobile | |
| Cores | 4 Core | |
| Frequency | 4 x 1.70 GHz | |
| Cache | 6MB | |
| Bus Speed | 4GT/s | |
| TDP | 15W | |
| Graphics | Intel 10th Gen Graphics 1.15GHz | |
| Graphics Frequency | 60Hz |
